HOJA DE SELECCIÓN DEL SISTEMA WD+ WIND ENERGY AEROGENERADOR DE 12 V/24 V
Información detallada

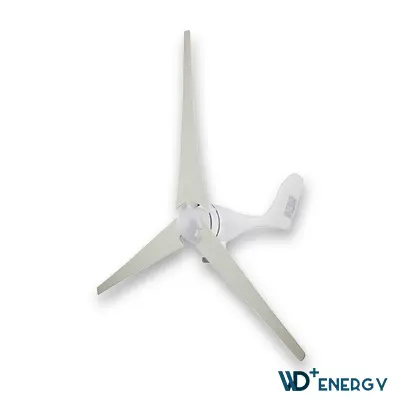

AEROGENERADOR DE ENERGÍA EÓLICA WD+
Serie 100-400W
Baja velocidad de arranque
Alta utilización de energía eólica
Bonito diseño
Baja vibración
Serie 100-400W
Baja velocidad de arranque
Alta utilización de energía eólica
Bonito diseño
Baja vibración
| Main Specification | ||||
| Model | WD-120A | WD-220A | WD-320A | WD-420A |
| Rated power (w) | 100W | 200W | 300W | 400W |
| Maximum power (w) | 120W | 220W | 320W | 420W |
| Rated voltage (v) | 12/24V | |||
| Start-up wind speed (m/s) | 3m/s | |||
| Rated wind speed (m/s) | 11m/s | |||
| Survival wind speed (m/s) | 50m/s | |||
| Operating temperature (m) | - 40℃ -80℃ | |||
| Noise at max power (dBa) | less than 50dBa | |||
| Brake | by controller | |||
| Number of blades | 3/5piece | |||
| Blades material | Nylon fiber | |||
| Generator type | 3 phase permanent magnet AC generator | |||
| Magnet material | NdFeB | |||
| Generator case | Casting aluminum alloy | |||
| Speed regulation | Automatically adjust windward direction | |||
| Certificates | CE, ISO14001, ISO 9001, TUV | |||
| Packing(mm) | 730*280*245 | |||
| Gross weight (kg) | 8kgs | 8kgs | 8.5kgs | 9kgs |
