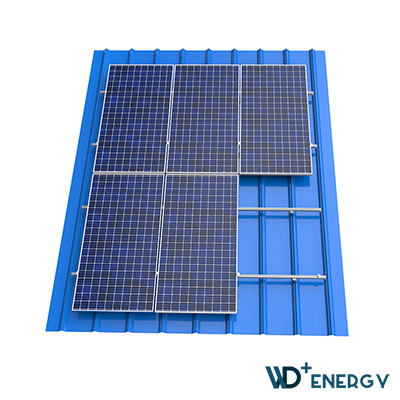

WD+ ENERGY SOLAR BRACKET METAL ROOF MOUNTING SYSTEM
Key Specifications / Features
Model No.: Hits: 55
consist of roof clamp,adjustable L-foot mounting rail ,other universal components and fasteners.roof clamps fasten on the roof seam without any penetration to the roof.
Request a quote Share PDF Tags:
Detail Information
WDM SERIES META ROOF MOUNTING
Features:
Applicable for Different Roofs-Design project by project, selecting configuration mounting system components flexibly.
Save Installation Time and Cost-Pre-assembled components and clear installation manual are supplied to save the onsite installation time and Cost, lead to better Rol .
Compatible to Different Types of Solar Modules-Compatible to most kinds of framed 60-cell, 72-ell, half-cut cells modules and frameless modules.
Features:
Applicable for Different Roofs-Design project by project, selecting configuration mounting system components flexibly.
Save Installation Time and Cost-Pre-assembled components and clear installation manual are supplied to save the onsite installation time and Cost, lead to better Rol .
Compatible to Different Types of Solar Modules-Compatible to most kinds of framed 60-cell, 72-ell, half-cut cells modules and frameless modules.
| Main Specification | |||||
| Installation Site | Metal Roof | Body Material | Aluminum-6005-T5 | ||
| Tilt Angle | Parallel to Exsting Roof | Bolt Material | SUS304 | ||
| Max Wind Force | ≦60m/s | Base Material | Q235/Cement | ||
| Snow Load | ≦1.4KN/㎡ | Surface Treatment | Anodized | ||
| Roof Type | Standing Seam | Warranty | 10 Years | ||
| Module Directions | Portrait | Design Standard | AS/NZ 1170,JIS C8955 2017, DIN 1055 ,IBC 2006 | ||
| Landscape | |||||
