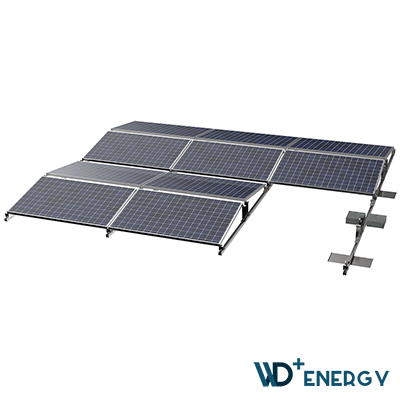

WD+ ENERGY SOLAR BRACKET ROOF BALLAST MOUNTING(EAST-WEST) SYSTEM
.jpg?q=80&fm=webp&s=81b47f08a03fbe57bc5a54d7f3e54ea1)
Key Specifications / Features
Model No.: Hits: 22
Roof Ballast Mounting System is a simply,easy-to -install structure without any penetration for flat roof projects in tropical areas.
Request a quote Share PDF Tags:
Detail Information
WDR SERIES ROOF BALLAST MOUNTING(EAST-WEST)
Features:
Applicable for various modules;
Various tilt angles designed for specific projects;
Easy & fast installation;
Ballast blocks applied without damage of rooftop, thermal insulation achieved; for penetration-allowed rooftops, fixing with expansion/ chemical bolts.
Features:
Applicable for various modules;
Various tilt angles designed for specific projects;
Easy & fast installation;
Ballast blocks applied without damage of rooftop, thermal insulation achieved; for penetration-allowed rooftops, fixing with expansion/ chemical bolts.
| Main Specification | |||||
| Installation Site | Flat Roof | Body Material | Aluminum-6005-T5 | ||
| Tilt Angle | 0-45° | Bolt Material | SUS304 | ||
| Max Wind Force | ≦60m/s | Base Material | Q235/Cement | ||
| Snow Load | ≦1.4KN/㎡ | Surface Treatment | Anodized | ||
| Module Directions | Landscape | Warranty | 10 Years | ||
| Foundation | Ballast Concrete | ||||
| Design Standard | AS/NZ 1170,JIS C8955 2017,DIN 1055 ,IBC 2006 | ||||
