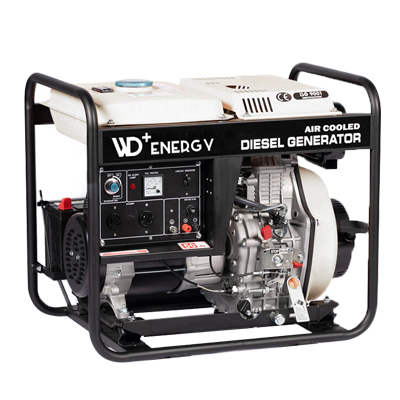

WD+ ENERGY PORTABLE DIESEL GENERATOR SET SELECTION SHEET
Key Specifications / Features
Model No.: WD+ Diesel Series Hits: 53
Power Range:2.0kW-8.0kW 50Hz / 2.2kW-8.5kW 60Hz,available in the following voltages:220V or 220/110V;
Request a quote Share PDF Tags:
Detail Information
WD+ ENERGY PORTABLE DIESEL GENERATOR SET SELECTION SHEET
·Powerful commercial level WD+ 4-stroke diesel engine with low vibration, low CO & NO emission
·Continuously supplying Clean & Pure Current
·Automatic low oil shutdown system to protect engine
·Wheel kit available for easy transportation
·All models equipped with AVR (Automatic Voltage regulator)
·Overload circuit breaker to protect generator and appliances
·Powerful commercial level WD+ 4-stroke diesel engine with low vibration, low CO & NO emission
·Continuously supplying Clean & Pure Current
·Automatic low oil shutdown system to protect engine
·Wheel kit available for easy transportation
·All models equipped with AVR (Automatic Voltage regulator)
·Overload circuit breaker to protect generator and appliances
| SPECIFICATION&SELECTION SHEET | ||||||
| Model | WD2200D | WD3200D | WD5500D | |||
| Frequency (Hz) | 50 | 60 | 50 | 60 | 50 | 60 |
| AC Voltage (v) | 220 | 110/220 | 220 | 110/220 | 220 | 110/220 |
| Rated AC Output (kw) | 1.8 | 2.0 | 2.8 | 3.0 | 4.5 | 5.0 |
| Max. Ac Output (kw) | 2.0 | 2.2 | 3.0 | 3.2 | 5.0 | 5.5 |
| DC output(v/a) | 12/8.3 | |||||
| Power Factor | 1 | |||||
| Over Current Protect | Yes | |||||
| Alternator type | Brush | |||||
| Voltage Regulator | AVR | |||||
| Engine | D170F | D178F | D186FA | |||
| Engine Type | Air-cooled,4-stroke,Single Cylinder,Diesel Engine | |||||
| BorexStroke | 70x55 | 78x62 | 86x72 | |||
| Displacement (cc) | 211 | 305 | 418 | |||
| Max. Output (hp) | 4.2/3600 | 6.0/3600 | 10.0/3600 | |||
| Fuel Type | 0# or -10# Light Diesel Fuel | |||||
| Lubrication Oil | SAE10W/30 | |||||
| Lubrication Oil Volume (L) | 0.75 | 1.1 | 1.65 | |||
| Starting System | Standard:Recoil Start / Option:Electric Start | |||||
| Fuel Tank Capactity (L) | 12.5 | 12.5 | 12.5 | |||
| Full load Continuous Work (h) | 17 | 14.5 | 9.7 | 9 | 6.5 | 6 |
| Dim (LXWXH) (mm) | 670X470X565 | 670X470X565 | 730X495X625 | |||
| Net Weight / Gross Weight (kg) | 52/54 | 63/65 | 100/105 | |||
| Model | WD6000D | WD7000D | WD8000D | |||
| Frequency (Hz) | 50 | 60 | 50 | 60 | 50 | 60 |
| AC Voltage (v) | 220 | 110/220 | 220 | 110/220 | 220 | 110/220 |
| Rated AC Output (kw) | 5.0 | 5.5 | 6.0 | 6.5 | 7.5 | 8.0 |
| Max. Ac Output (kw) | 5.5 | 6.0 | 6.5 | 7.0 | 8.0 | 8.5 |
| DC output(v/a) | 12/8.3 | |||||
| Power Factor | 1 | |||||
| Over Current Protect | Yes | |||||
| Alternator type | Brush | |||||
| Voltage Regulator | AVR | |||||
| Engine | D188FA | D192F | D1100F | |||
| Engine Type | Air-cooled,4-stroke,Single Cylinder,Diesel Engine | |||||
| BorexStroke | 88x75 | 92x75 | 100x85 | |||
| Displacement (cc) | 456 | 498 | 667 | |||
| Max. Output (hp) | 12/3600 | 14.0/3600 | 20.0/3600 | |||
| Fuel Type | 0# or -10# Light Diesel Fuel | |||||
| Lubrication Oil | SAE10W/30 | |||||
| Lubrication Oil Volume (L) | 1.65 | 1.65 | 2.1 | |||
| Starting System | Standard:Recoil Start / Option:Electric Start | |||||
| Fuel Tank Capactity (L) | 12.5 | 12.5 | 12.5 | |||
| Full load Continuous Work (h) | 6.5 | 6 | 6 | 5.5 | 5.5 | 5 |
| Dim (LXWXH) (mm) | 730X495X625 | 730X495X625 | 820X580X700 | |||
| Net Weight / Gross Weight (kg) | 103/108 | 105/110 | 112/117 | |||
