WD+ WIND ENERGY VERTICAL AXIS WIND TURBINE12V/24V/48V SYSTEM SELECTION SHEET
Key Specifications / Features
Model No.: Hits: 9
200w-1000w Wind Power Generator 12V/24V/48V Optional Wind Turbine
Request a quote
Share
PDF
Tags:
Detail Infomation

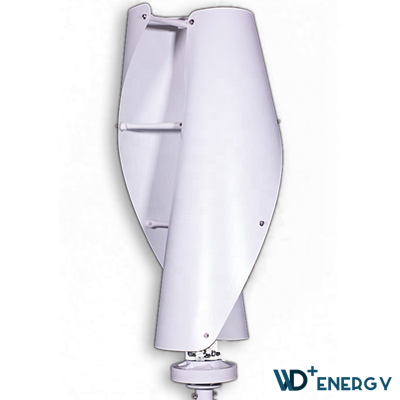

WD+ WIND ENERGY VERTICAL AXIS WIND TURBINE
100-400W Series
Low Start Up Speed
High Wind Energy Utilization
Beautiful Design
Low Vibration
100-400W Series
Low Start Up Speed
High Wind Energy Utilization
Beautiful Design
Low Vibration
| Main Specification | ||||||
| Model | WD-215V | WD-320V | WD-425V | WD-540V | WD-655V | WD-1100V |
| Rated power (w) | 200W | 300W | 400W | 500W | 600W | 1000W |
| Maximum power (w) | 215W | 320W | 425W | 540W | 655W | 1100W |
| Rated voltage (v) | 12/24V/48V(Customized for up 600W) | |||||
| Start-up wind speed (m/s) | 1.3m/s | |||||
| Rated wind speed (m/s) | 11m/s | |||||
| Survival wind speed (m/s) | 40m/s | |||||
| Number of blades | 2 piece | |||||
| Blades material | Glass/Basalt | |||||
| Mount Height(m) | 7~12m | |||||
| Control System | Electromagnet | |||||
| Generator type | 3 phase permanent magnet AC generator | |||||
| Magnet material | VAWT -25~+45℃ | |||||
| Controller -10~+45℃ | ||||||
| Inverter 0~+40℃ | ||||||
| Work environment humidity | VAWT ≤90% | |||||
| Controller and inverter≤80% | ||||||
| Overspeed protection | Electromagnetic brake | |||||
| Overload protection | Electromagnetic brake and unloading unit | |||||
