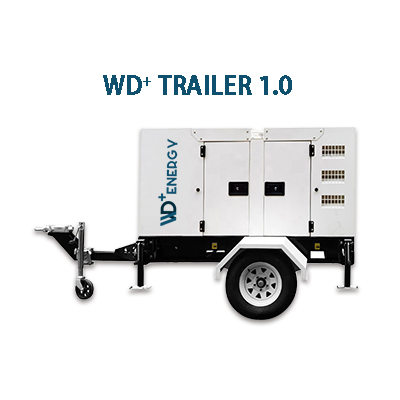

WD+ ENERGY TRAILER 1.0
Key Specifications / Features
Model No.: WD+ TRAILER 1.0 Hits: 7
Power Range:10kVA-138kVA
Request a quote
Share
Tags:
Next: WD+ ENERGY TRAILER 2.0
Previous: WD+ ENERGY SILENT CANOPY 2.0
Detail Infomation
Standard Features
1、Covering full range of silent generator sets
2、Attractive and weather-proof design can be used in harsh environments
3、Multi-lifting at the top & bottom is designed for easy transfer
4、Unique inlet and outlet duct design prevents devris and dust inhaled
5、Perfect in and out of the wind system ensures the normal operation
6、Large capacity fuel tank with double layer structure ensures the generator set to run at full load for 8 to 10 hours and no leakage
7、IP65 Control box and distribution box design
8、The electric leakage protection function in looping circuit ensures safety performance
9、International standard plug connector and outer terminal guarantees quick,safe & convenient operation
10、Single axle two wheels, front supporting guide wheel, height adjustable traction mechanism, leaf spring (optional torsion bar bridge), support leg, brake system (driving inertia brake, decoupling emergency brake, driver standing brake), taillight electrical assembly
***Specification subject to change without prior note***
1、Covering full range of silent generator sets
2、Attractive and weather-proof design can be used in harsh environments
3、Multi-lifting at the top & bottom is designed for easy transfer
4、Unique inlet and outlet duct design prevents devris and dust inhaled
5、Perfect in and out of the wind system ensures the normal operation
6、Large capacity fuel tank with double layer structure ensures the generator set to run at full load for 8 to 10 hours and no leakage
7、IP65 Control box and distribution box design
8、The electric leakage protection function in looping circuit ensures safety performance
9、International standard plug connector and outer terminal guarantees quick,safe & convenient operation
10、Single axle two wheels, front supporting guide wheel, height adjustable traction mechanism, leaf spring (optional torsion bar bridge), support leg, brake system (driving inertia brake, decoupling emergency brake, driver standing brake), taillight electrical assembly
| Model | Configuration | Applicable Generator Set | Size of the Trailer | Axle Specification /Quantity |
Tire Specification /Quantity |
Support Leg /Quantity |
| WD+ Trailer 1.0 | Single axles and two wheels | 1300*800*850 | 2300*1500*850 | 1.5T*1 | 6.50-16*2 | 4*1T |
| 1850*900*880 | 2850*1500*880 | 1.5T*1 | 6.50-16*2 | 4*1T | ||
| 2600*1100*705 | 3100*1750*910 | 2T*1 | 7.00-16*2 | 4*1T | ||
| 3200*1100*705 | 4700*1750*950 | 3T*1 | 7.00-16*2 | 4*1T |
***Specification subject to change without prior note***
