ATS(AUTOMATIC TRANSFER SWITCH) SELECTION GUIDE
Key Specifications / Features
Model No.: WD+ ATS1.0 Hits: 31
Previous: WD+ ENERGY CONTROLLER SELECTION GUIDE
Detail Information

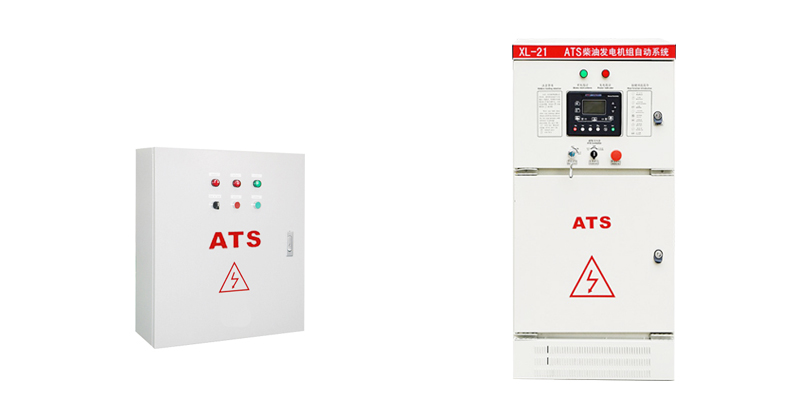

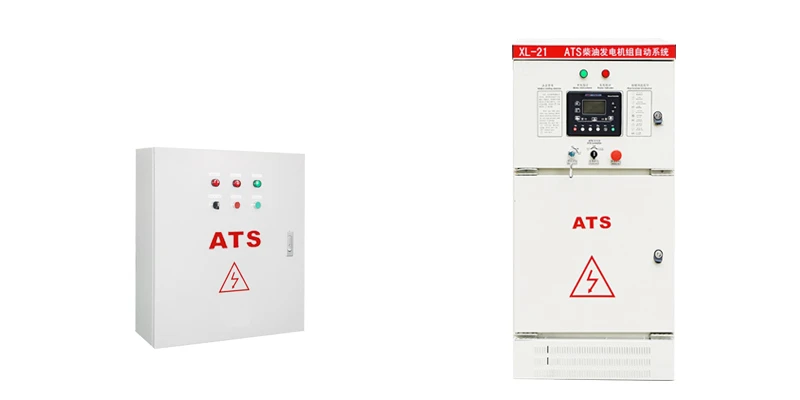

WD+ ATS1.0
WD+ ATS1.0 adopt AISIKAI SKT series ATS (automatic transfer switch)which is the most advanced third generation ATS. It's of PC Class (one-piece structure). SKT standard type is able to operate the current from 20A to 3200A.
Its use category reaches the highest AC-33A, is suitable for reliable
Stanards
IEC60947-6-1
GB/T14048.11
Features:
Voltage and Switch Working Conditions Indications Using LED
External Replaceable Fuses, Easy For Maintenance
Built-in Microprogrammed Control Unit Realise Voltage Dectection Function
Silver Plated High Purity Copper Bars
Brige Connect Structure on Load Side
Three-Sections Design (I–0–II), Zero Position For Dual Powers Off
Pluggable Wiring Terminals
Mechanical Interlock & Electrical Interlock
| WD+ ATS 1.0 | |||
| Model | Rated Current | Poles of CB | Dim(LxWxH) |
| SKX2/20-100A/4P | 100A | 3 or 4 | 500*500*250 |
| SKT1-125/4P | 125A | 3 or 4 | 600*600*250 |
| SKT1-160/4P | 160A | 3 or 4 | |
| SKT1-250/4P | 250A | 3 or 4 | |
| SKT1-400/4P | 400A | 3 or 4 | 600*1000*500 |
| SKT1-630/4P | 630A | 3 or 4 | |
| SKT1-8004P | 800A | 3 or 4 | GGD |
| SKT1-1000/4P | 1000A | 3 or 4 | |
| SKT1-1250/4P | 1250A | 3 or 4 | |
| SKT1-1600/4P | 1600A | 3 or 4 | |
| SKT1-2000/4P | 2000A | 3 or 4 | |
| SKT1-2500/4P | 2500A | 3 or 4 | |
| SKT1-3200/4P | 3200A | 3 or 4 | |
***Specification subject to change without prior note**
